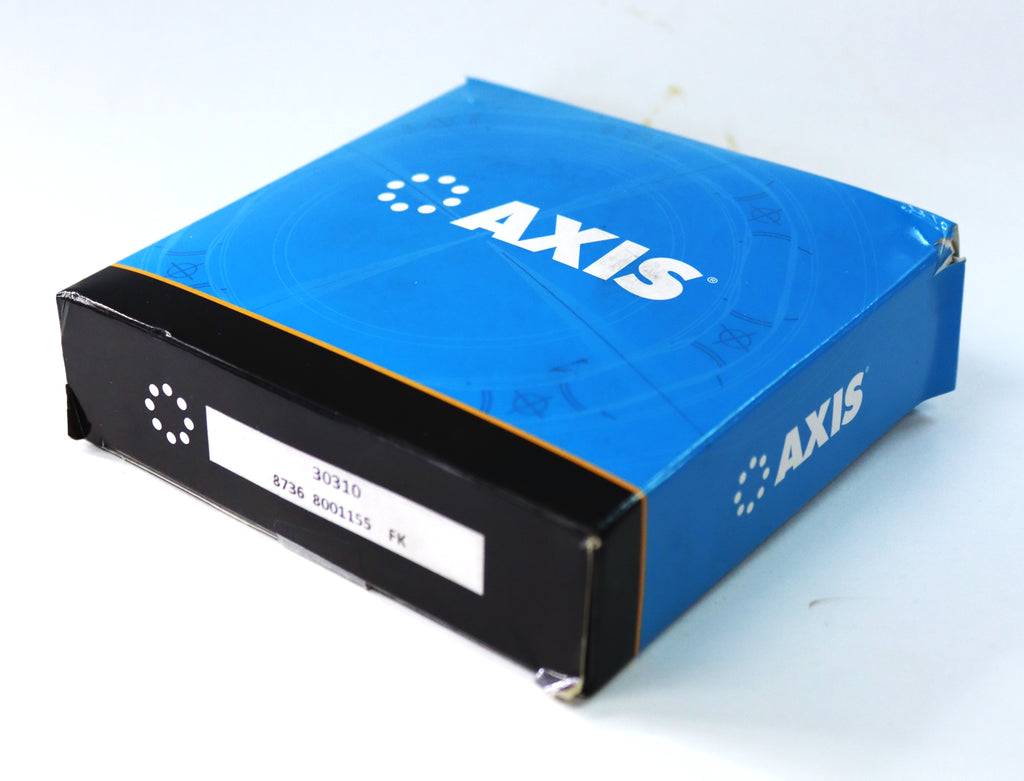

30310, Axis Brand, Metric Tapered Roller Bearing Assy. (0926)

$ 64.75

Key Dimensions

Cone Part Number	X30310M
Cup Part Number	Y30310M
Bore (d)	50 mm1.9685 in
O.D. (D)	110 mm4.3307 in
Width (T)	29.250 mm1.1516 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	168000 N37800 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	43600 N9810 lbf
e Factor ³	0.35
K Factor ⁴	1.69
Series	30310M
Y Factor ⁵	1.74

Other Dimensions

Inner Ring Width (B)	27.000 mm1.0630 in
Outer Ring Width (C)	23.000 mm0.9055 in
Effective Center Location⁶	-6.1 mm-0.24 in
Max Shaft Fillet Radius⁷	2.540 mm0.100 in
Max Housing Fillet Radius⁸	2.03 mm0.08 in
Shaft Backing Shoulder Diameter - Frontface (da)	61 mm2.4 in
Shaft Backing Shoulder Diameter - Backface (db)	65 mm2.56 in
Housing Backing Shoulder Diameter - Frontface (Da)	103.89 mm4.09 in
Housing Backing Shoulder Diameter - Backface (Db)	98.04 mm3.86 in
Cage Location Relative to Backface (Aa)	1.3 mm0.05 in
Cage Location Relative to Frontface (Ab)	4.1 mm0.16 in
Net Weight	1.3 Kg. / 2.78 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	25800 N5790 lbf
Static Radial Load Rating (C0)	150000 N33800 lbf

Factors

G1 Factor	51
G2 Factor	17.5
Geometry Factor (Cg)¹⁰	0.0907
