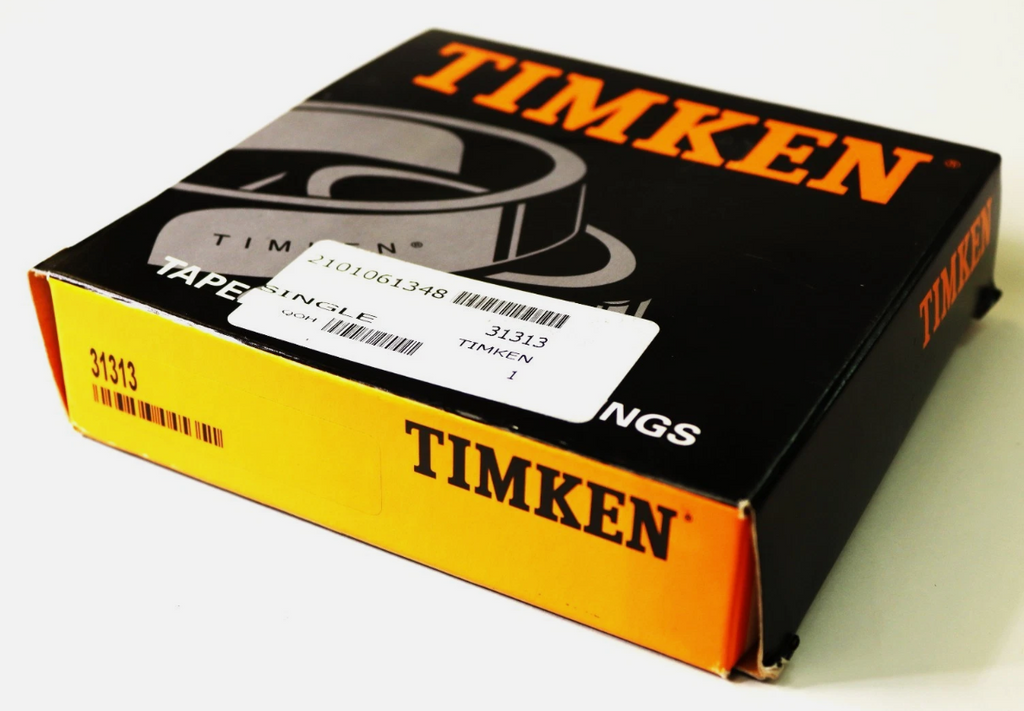

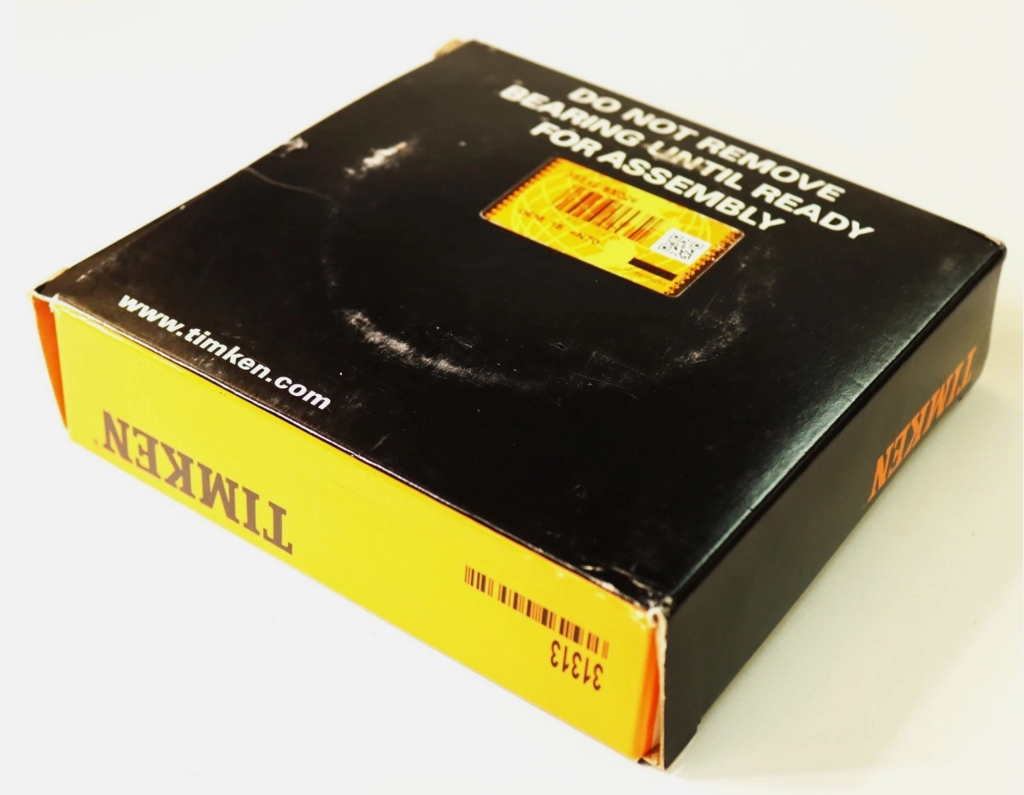

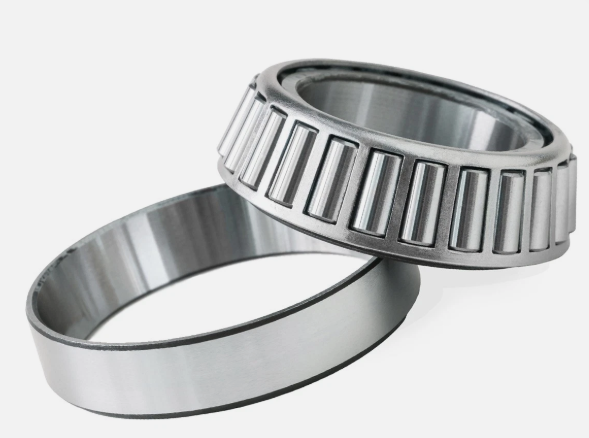

31313 Timken Metric Tapered Roller Bearing Set/Assembly (0926)

31313 Timken Metric Tapered Roller Bearing Set/Assembly (0926)

$ 149.25

Key Dimensions

Cone Part Number	X31313M
Cup Part Number	Y31313M
Bore (d)	65 mm / 2.5591 in
O.D. (D)	140 mm / 5.5118 in
Width (T)	36 mm / 1.4173 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	212000 N / 47800 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	55100 N / 12400 lbf
e Factor ³	0.83
K Factor ⁴	0.71
Series	31313M
Y Factor ⁵	0.73

Other Dimensions

Inner Ring Width (B)	33.000 mm / 1.2992 in
Outer Ring Width (C)	23.000 mm / 0.9055 in
Effective Center Location⁶	8.1 mm / 0.32 in
Max Shaft Fillet Radius⁷	3.050 mm / 0.120 in
Max Housing Fillet Radius⁸	2.54 mm / 0.1 in
Shaft Backing Shoulder Diameter - Frontface (da)	80 mm / 3.15 in
Shaft Backing Shoulder Diameter - Backface (db)	96 mm / 3.78 in
Housing Backing Shoulder Diameter - Frontface (Da)	133.10 mm / 5.24 in
Housing Backing Shoulder Diameter - Backface (Db)	119.89 mm / 4.72 in
Cage Location Relative to Backface (Aa)	5.3 mm / 0.21 in
Cage Location Relative to Frontface (Ab)	5.3 mm / 0.21 in
Weight	2.40 Kg / 5.3 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	77800 N / 17500 lbf
Static Radial Load Rating (C0)	217000 N / 48700 lbf

Factors

G1 Factor	67.1
G2 Factor	22.2
Geometry Factor (Cg)¹⁰	0.0839
