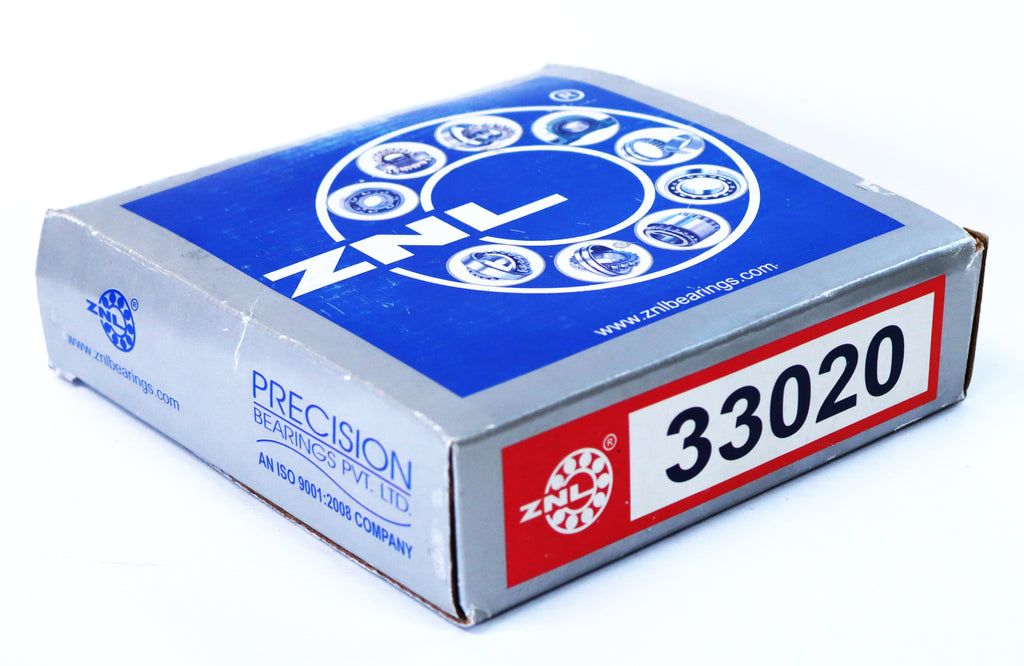

33020, ZNL Brand, Metric Tapered Roller Bearing (0926)

$ 140.70

Key Dimensions

Cone Part Number	X33020M
Cup Part Number	Y33020M
Bore (d)	100 mm 3.937 in
O.D. (D)	150 mm 5.9055 in
Width (T)	39.000 mm 1.5354 in
Dynamic Radial Load Rating - 1M Revs (C1) ¹	251000 N 56300 lbf
Dynamic Radial Load Rating - 90M Revs (C90) ²	65000 N 14600 lbf
e Factor ³	0.29
K Factor ⁴	2.03
Series	33020
Y Factor ⁵	2.09

Other Dimensions

Inner Ring Width (B)	39 mm 1.5354 in
Outer Ring Width (C)	32.500 mm 1.2795 in
Effective Center Location⁶	-9.4 mm -0.37 in
Max Shaft Fillet Radius⁷	2.030 mm 0.080 in
Max Housing Fillet Radius⁸	1.52 mm 0.06 in
Shaft Backing Shoulder Diameter - Frontface (da)	107 mm 4.21 in
Shaft Backing Shoulder Diameter - Backface (db)	111 mm 4.37 in
Housing Backing Shoulder Diameter - Frontface (Da)	145.03 mm 5.71 in
Housing Backing Shoulder Diameter - Backface (Db)	138.94 mm 5.47 in
Cage Location Relative to Backface (Aa)	1.3 mm 0.05 in
Cage Location Relative to Frontface (Ab)	3 mm 0.12 in
Net Weight	2.40 Kg 5.2 lb

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)⁹	31900 N 7180 lbf
Static Radial Load Rating (C0)	393000 N 88300 lbf

Factors

G1 Factor	206.3
G2 Factor	65.1
Geometry Factor (Cg)¹⁰	0.0938

Country of Origin: India
