> Products > 440 Timken Tapered Roller Bearing Cone (0726)

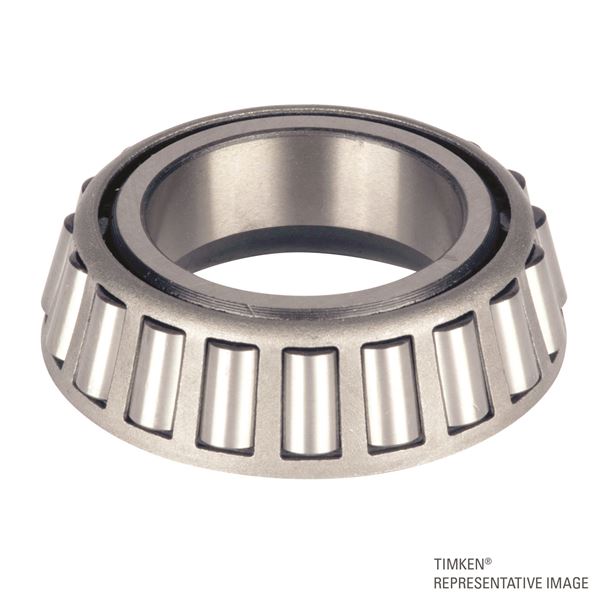

440 Timken Tapered Roller Bearing Cone (0726)
440 Timken Tapered Roller Bearing Cone (0726)
440 Timken Tapered Roller Bearing Cone (0726)

440 Timken Tapered Roller Bearing Cone (0726)

$ 87.60

440 TIMKEN

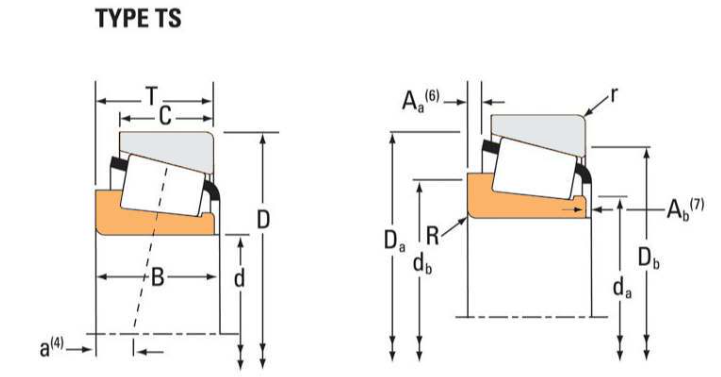

Key Dimensions

Cone Part Number

 440

Bore (d)

 1 1/2 in. / 38.1 mm

Inner Ring Width (B)

 1.1772 in. / 29.901 mm

Dynamic Radial Load Rating - 1M Revs (C1) 1

 28,500 lbf. / 12,7000 N

Dynamic Radial Load Rating - 90M Revs (C90) 2

 7,400 lbf. / 32,900 N

K Factor 3

 2.05



Other Dimensions

Weight

 1.48 lb. / 0.671 Kg.

Effective Center Location4

 -0.36 in. / -9.1 mm

Max Shaft Fillet Radius5

 0.03 in. / 0.800 mm

Shaft Backing Shoulder Diameter - Frontface (da)

 1.79 in. / 45.5 mm

Shaft Backing Shoulder Diameter - Backface (db)

 1.83 in. / 46.5 mm

Cage Location rel. to BF (Aa)

 0.04 in. / 1 mm

Cage Location rel. to FF (Ab)

 0.05 in1.3 mm

Ratings

Dynamic Axial Rating - 90M Revs (Ca90)6

 3600 lbf. / 16000 N

Static Radial Load Rating (CO)

 32400 lbf. / 144000 N

Factors

G1 Factor

 42.5

G2 Factor

 11.3

Geometry Factor (Cg)7

 0.0805
  • 1 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 2 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 4 Negative value indicates effective center inside cone backface.
  • 5 These maximum fillet radii will be cleared by the bearing corners.
  • 6 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 7 Geometry constant for Lubrication Life Adjustment Factor a3l.
