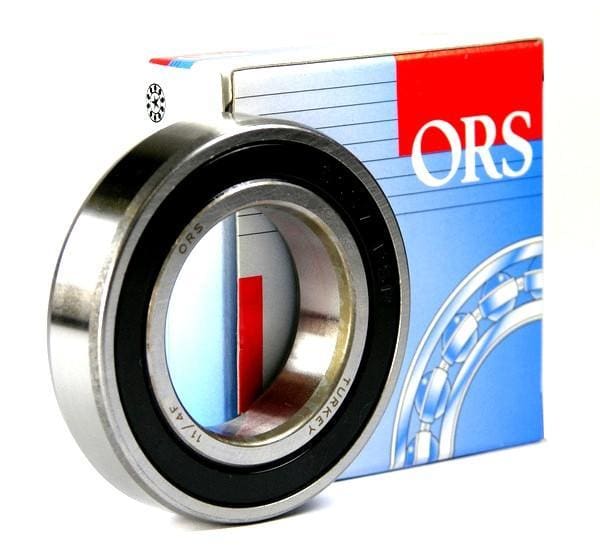

Item: 6003 2RS C3 ORS Radial Ball Bearing
Bearing Type: "Conrad" Deep Groove Radial Ball Bearing
Closures: Two Synthetic Rubber Seals
Bore Dia.: 17 mm, Bore Tolerance: +0/-.008 mm
Outside Dia.: 35 mm, Outside Dia. Tolerance: +0/-.011 mm
Width: 10 mm
ABEC Tolerance: 1
Dynamic Load Capacity: 1,430 lb.
Static Load Capacity: 730 lb.
Max. Load Axial: 365 lb.
Max. RPM: 13,000
Temp. Range: -40 Degrees to 212 Degrees F.
Bearing Material: 52100 Chrome Steel
Cage (Separator) Material: Pressed Steel
Seal Material: Synthetic Rubber
Lubrication: EMQ Grease
Industry Standard Number: 6003-2RS C3
