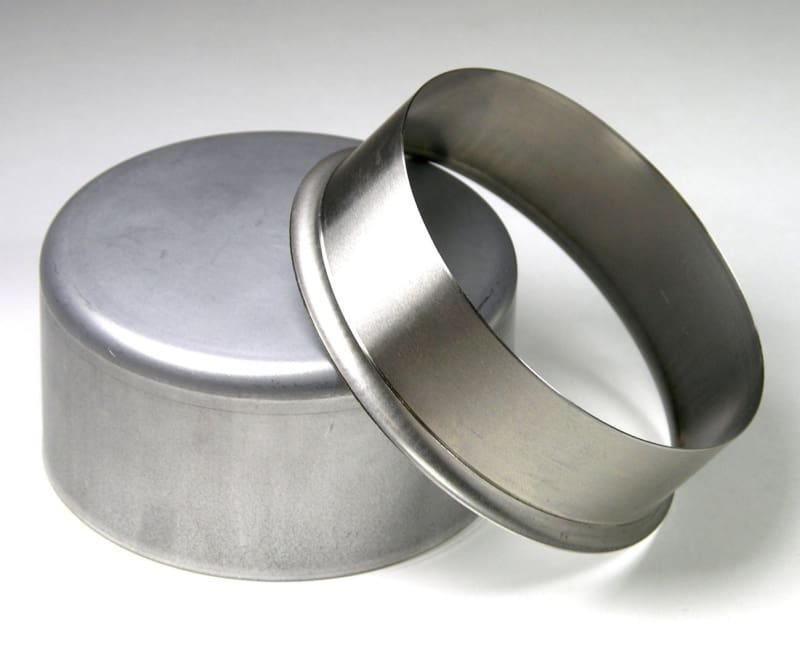

99147 (ST147) Sturdi Sleeve Shaft Repair Kit
For Shaft Size: 1.490" ~ 1.496", Installed Width on Shaft: 0.512", Max Installation Depth: 0.984"
Sturdi Shaft Repair Kit: Includes Stainless Steel Sleeve, Installation Tool and Instructions. Individually Boxed
|Type of Product:||Sturdi Sleeve Shaft Repair Sleeve Kit|
|Nominal Shaft Diameter:||1.496"|
|Width on Shaft:||0.512"|
|Material:||Ultra-thin wear sleeve made from SAE/AISI 304 stainless steel. Surface Hardness: Over 220HV (95 HRB), Wall Thickness: 0.28mm|
|Typical Application:||The quick, easy and effective alternative to resizing, metallizing, or replacing damaged shafts.|
|Shaft Size Range:||1.490" ~ 1.496"|
|Features:||Outside surface forms an ideal sealing surface without the need for additional surface preparation. Fast shaft repair with included installation tool, often without changing the current seal. Tools Required for Installation: Mallet and Pliers|
|Weight Each:||0.200 Lbs.|
Excessive water, dirt, heat, lack of lubrication or high shaft speed can all cause a sealing lip to groove the shaft and ultimately create a leak. When a new seal cannot compensate for excessive damage in shafts, select a STURDI Sleeve. This ultra-thin wear sleeve provides a snug, leak-proof fit on shafts. Sturdi Sleeve is the cost-effective alternative to resizing, metallizing or replacing the severely damaged surface. It installs easily, with minimal machine downtime.
Learn more about Sturdi at www.sturdi-usa.com
