Ucp208-24 1-1/2 2-Bolt Pillow Block - Pillow Block

UCP208-24, 1-1/2" Bore, 2-Bolt Pillow Block (0624)

$ 44.73

UCP Series - Standard Duty, Set Screw Locking Type

Standard duty unit, set screw locking
One-piece cast iron housing, solid base
Wide inner ring bearing
Dual heavy-duty slinger type contact seals
Grease fitting for adding lubricant
Anti-Rotation device
Triple lip seals available on request

Specifications:
Unit No.	UCP208-24
Bearing Type	Pillow Block - Standard duty unit, set screw locking
Material	Cast iron housing, AISI 52100 steel insert
Shaft Diameter	1.5 in
Insert No.	UC208-24
Housing No.	P208
Basic Dynamic Load Rating (Cr)	6631.86 lbs
Basic Static Load Rating (Cor)	4069.04 lbs
Weight	4.25 lbs

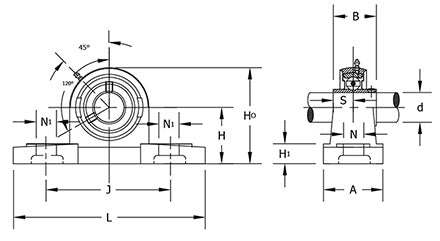

download the dimension & spec sheet for this series

INTERCHANGE
AMI: UCP 208-24
Browning: VPS-224
Dodge: P2B-SC-108
Fafnir: RASC-1 1/2
Fafnir: YAS-1 1/2
Link-Belt: P3-U224N
Link-Belt: P3-Y224N
NSK: USP208-24S
NTN: UCP208-108T
Peer: FHSP208-24G
RHP: NP-1 1/2
Sealmaster: NP-24
