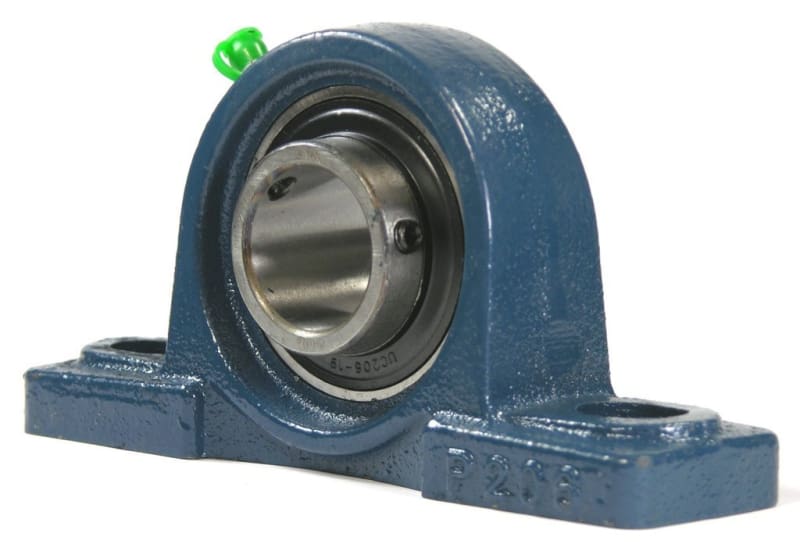

UCP208-24, 1-1/2" Bore, Set-Screw Locking, 2-Bolt Pillow Block (0126)

$ 44.73

UCP Series - Standard Duty, Set Screw Locking Type

Standard duty unit, set screw locking
One-piece cast iron housing, solid base
Wide inner ring bearing
Dual heavy-duty slinger type contact seals
Grease fitting for adding lubricant
Anti-Rotation device
Triple lip seals available on request

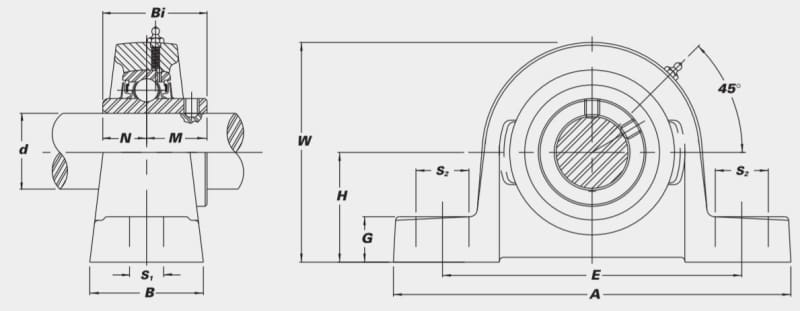

SPECIFICATION

d - Shaft Dia.	1 1/2 Inch
H - Dimension	2 1/8 Inch54.0 mm
A - Dimension	7 1/2 Inch190.5 mm
E - Dimension	5 3/4 Inch146.1 mm
B - Dimension	2 1/8 Inch54.1 mm
S2 - Dimension	13/16 Inch 20.6 mm
S1 - Dimension	19/32 Inch 15 mm
G - Dimension	7/8 Inch 22.3 mm
W - Dimension	4 17/64 Inch 108.3 mm
Bi - Dimension	1.9370 Inch 49.2 mm
N - Dimension	0.7480 Inch 19.0 mm
M - Dimension	1.1890 Inch 30.2 mm
Bolt Used	1/2 Inch
Bearing No.	UC X08-24
Housing No.	P X08
Net Weight	7.70 lb
